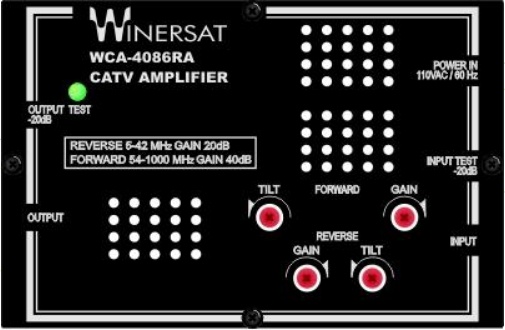

| WCA-4086RA |
peration Frequency Range | 54~1000MHz |
Output Level | 60 dBmV |
Gain | Typical 40 dB |
Reverse Gain | 0 or 20 dB(option) |
Gain Control | 0~-20 dB Continuously Adjustable |
Tilt Control | 0~-20 dB Continuously Adjustable |
Gain Flatness | ±2.0 dB |
Return Insertion Loss | ≦ 4dB |
Input Return Loss | ≧ 10dB |
Output Return Loss | ≧ 10dB |
Noise Figure | 6.0 dB |
Input & Output Impedance | 75 Ω |
Input & Output Test Point | -20dB |
Connectors | Input, Output & Input, Output Test Point (All F-Type) |
Power Supply | 110V AC or 190V~230V AC |
Power Consumption | 9W |
Operating Temperature | -10~+50℃ |
AC Fuse (Internal) | 0.63 Amp |
Size | 17.5mm(L)x134mm(W)x49mm(H) |
Packing (Per Carton) | 1 Set/Inner box 20 Sets/Carton/20Kgs/3.6 cuft |

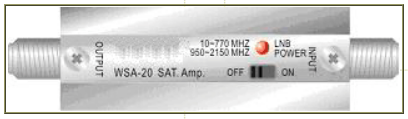

Output Frequency Range | 10~770MHZ |
Power Gain | 10~770MHZ LOSS ≦ 3dB |
Noise Figure | ≦ 5dB |
Power Source | 11~18 VDC |
Power Passing | 500mA Max |
Connectors | 75Ω F-Type |
Size | 93mm (H) X 22mm (HEX) |
| OMS-24D | OMS-34A | OMS-34D | |
In/Out Port Number | 2/4 | 3/4 | 3/4 | |
Frequency Range (Mhz) | TV Band |
| 40 to 860 | 40 to 860 |
SAT Band | 950 to 2150 | 950 to 2150 | 950 to 2150 | |
Input Level (dBm) | TV Band |
| -17 to -42 | -17 to -42 |
SAT Band | -32 to -65 | -32 to -65 | -32 to -65 | |
Insertion Loss (dB) | TV Band |
| 0 | -10 |
SAT Band | -5 max | 0 | -5 | |
Isolation (dB) | TV Band |
| 20 | 20 |
SAT Band | 20 min | 20 | 20 | |
Impedance (Ohm) | 75 | |||
Switch Voltage (V) | 13/14 VDC RHCP/HORI 17/18 VDC LHCP/VERT | |||
Operating Voltage (V) | 12 to 18 | |||
DC Pass (mA) | 500 max | |||
Power Consumption (mA) | 80 max @ 18V | |||
Dimensions (mm) | 28 x 149 x 112 (HxWxD) |
Model | SW - 22T | SW - 22D | ||||
Note | Power ON / OFF, Only | Signal & power ON / OFF together | ||||
RF Switch Type | NONE | RF PIN DIODE | ||||
Operating Voltage | DC 12V to 20V | DC 12V to 20V | ||||
Current Consumption | 25mA (max.) | 35mA (max.) | ||||
DC Drop Voltage | 0.2V(300mA) , 0.4V(500mA) | 0.2V(300mA) , 0.4V(500mA) | ||||
Pass Current | 600mA (max.) | 600mA (max.) | ||||
Switching Request | 22 KHz (squire wave) , 0.2V (min.) , duty cycle 50% | |||||
Switching Frequency Range | 10KHz-45KHz (squire wave , 0.2V , duty cycle 50%) | |||||
Pass Band | 30 - 2300MHz | 30 - 2400MHz | ||||
Frequency Range (MHz) | 30-700 | 700-2150 | 2150-2300 | 30-700 | 700-2150 | 2150-2400 |
Insertion Loss(dB max.) | 4.5 | 6.0 | 7.0 | 2.2 | 3.5 | 5.2 |
Isolation (dB min.) | 20 | 20-14 | 14 | 50 | 50-35 | 32 |
Net Weight | 160g | 160g | ||||
Dimensions | 23 x 75 x 59 (mm) | 23 x 75 x 59 (mm) |

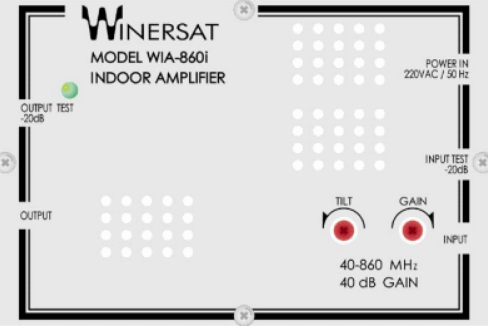

WCA-5086 | WIA-860i | |
peration Frequency Range | 45~860MHz | 45~860MHz |
Output Level | 60 dBmV | 60 dBmV |
Gain | Typical 50 dB | Typical 40 dB |
Reverse Gain | ||
Gain Control | 0~-18 dB Continuously Adjustable | 0~-20 dB Continuously Adjustable |
Tilt Control | 0~-16 dB Continuously Adjustable | 0~-20 dB Continuously Adjustable |
Gain Flatness | ±1.0 dB | ±2.0 dB |
Return Insertion Loss | ||
Input Return Loss | ≧13dB | |
Output Return Loss | ≧14dB | |
Noise Figure | 7.0 dB | 4.5dB |
Input & Output Impedance | 75 Ω | 75 Ω |
Input & Output Test Point | -20dB | -20dB |
Connectors | Input, Output & Input, Output Test Point (All F-Type) | Input, Output & Input, Output Test Point (All F-Type) |
Power Supply | 100V~120V AC or 190V~230V AC | 110V AC or 220V AC |
Power Consumption | 20W | 8W |
Operating Temperature | -10~+60℃ | 0~+50℃ |
AC Fuse (Internal) | 1 Amp | 0.5 Amp |
Size | 17.5mm(L)x134mm(W)x49mm(H) | 17.5mm(L)x134mm(W)x49mm(H) |
Packing (Per Carton) | 1 Set/Inner box 20 Sets/Carton/20Kgs/3.6 cuft | 1 Set/Inner box 20 Sets/Carton/20Kgs/3.6 cuft |
Specification | DS-21W | DS-21S | DSW-21 | DS-41W | DS-41S | DSW-41 | |
Input Frequency | (MHz) | 950~2300MHz | 950~2300MHz | 47~2300MHz | 950~2300MHz | 950~2300MHz | 47~2300MHz |
Insertion Loss | (dB) | 2 | 2 | 4 | 2 | 2 | 4 |
Return Loss | (dB) | 8 | 8 | 8 | 8 | 8 | 8 |
Isolation | (dB) | 20 | 20 | 25 | 20 | 20 | 25 |
Current Consumption | (mA) | 10 | 20 | 40 | 10 | 20 | 40 |
Max.Current To LNB | (mA) | 500 | 500 | 500 | 500 | 500 | 500 |
In/Out Connector |
| 75Ω F-(f) | 75Ω F-(f) | 75Ω F-(f) | 75Ω F-(f) | 75Ω F-(f) | 75Ω F-(f) |
Dimensions | (mm) | 97x101x23 | 65x41x14 | 86x93x25 | 97x101x23 | 65x41x14 | 86x93x25 |
With Weather-Cap |
| O | X | X | O | X | X |
Selection Table | SAT |
| Option |
|
|
|
|
Model | Description | Tap Loss | In-out | IN-BR | Out-BR | BR-BR | Dimensions |
SC1 | 1-WAY TAP | 8 | 4.5 - 6.5 | 8-12 | 18-25 |
| 23x52x59 |
12 | 2.5 - 4 | 12-16 | 18-25 |
| |||
16 | 16-20 | 20-25 |
| ||||
20 | 20-24 | 22-25 |
| ||||
24 | 24-28 | 23-25 |
| ||||
28 | 28-32 | 23-25 |
| ||||
SC2 | 2-WAY TAP | 12 | 3.5-5.5 | 12-16 | 18-25 | 16-20 | 23x52x59 |
16 | 3.0-4.5 | 16-20 | 18-25 | 16-20 | |||
20 | 20-24 | 18-25 | 14-20 | ||||
24 | 2.5-4 | 24-28 | 22-25 | 14-20 | |||
28 | 28-32 | 22-25 | 14-18 | ||||
SC4 | 4-WAY TAP | 12 | 6.5-8.5 | 12-16 | 22-25 | 18-20 | 23x75x59 |
16 | 3.0-6.0 | 16-20 | 22-27 | 20-22 | |||
20 | 3.0-4.5 | 20-24 | 22-28 | 20-22 | |||
24 | 24-28 | 22-28 | 20-22 | ||||
28 | 28-32 | 22-28 | 20-22 | ||||
SC6 | 6-WAY TAP | 20 | 2.5-6.5 | 18.5-26 | 22-35 | 18-22 | 23x119x59 |
25 | 24.5-31.5 | 25-35 | 18-22 | ||||
30 | 26.5-33.5 | 30-40 | 18-22 | ||||
SC8 | 8-WAY TAP | 20 | 2.5-6.5 | 18.5-26 | 25-35 | 15-22 | 23x119x59 |
25 | 23-31 | 25-35 | 15-22 | ||||
30 | 28-35 | 32-40 | 15-22 |
Model | SW - 22T | SW - 22D | ||||
Note | Power ON / OFF, Only | Signal & power ON / OFF together | ||||
RF Switch Type | NONE | RF PIN DIODE | ||||
Operating Voltage | DC 12V to 20V | DC 12V to 20V | ||||
Current Consumption | 25mA (max.) | 35mA (max.) | ||||
DC Drop Voltage | 0.2V(300mA) , 0.4V(500mA) | 0.2V(300mA) , 0.4V(500mA) | ||||
Pass Current | 600mA (max.) | 600mA (max.) | ||||
Switching Request | 22 KHz (squire wave) , 0.2V (min.) , duty cycle 50% | |||||
Switching Frequency Range | 10KHz-45KHz (squire wave , 0.2V , duty cycle 50%) | |||||
Pass Band | 30 - 2300MHz | 30 - 2400MHz | ||||
Frequency Range (MHz) | 30-700 | 700-2150 | 2150-2300 | 30-700 | 700-2150 | 2150-2400 |
Insertion Loss(dB max.) | 4.5 | 6.0 | 7.0 | 2.2 | 3.5 | 5.2 |
Isolation (dB min.) | 20 | 20-14 | 14 | 50 | 50-35 | 32 |
Net Weight | 160g | 160g | ||||
Dimensions | 23 x 75 x 59 (mm) | 23 x 75 x 59 (mm) |
Model | Combine | Pass Band | Return | Out-of-band | Power | Dimensions |
SAT-201 | 900-1350 | 4 | 6 | 15 | O | 23x75x59 |
1450-2350 | 3.5 | 6 | 15 | O | ||
SAT-301 | 950-1400 | 5 | 6 | 15 | O | 23x83x68 |
1450-1600 | 5.5 | 6 | 15 | O | ||
1670-2250 | 5.5 | 6 | 15 | O | ||
SAT-401 | 950-1200 | 7 | 6 | 15 | O | 23x83x68 |
1240-1400 | 7 | 6 | 15 | O | ||
1450-1600 | 7 | 6 | 15 | O | ||
1670-2250 | 7 | 6 | 15 | O | ||
SAT-2014 | 950-1400 | 4 | 6 | 15 | O | 23x75x59 |
1500-2350 | 3.5 | 6 | 15 | O | ||
SAT-2015 | 950-1450 | 4 | 6 | 15 | O | 23x75x59 |
1550-2350 | 3.5 | 6 | 15 | O |
Model | Description | Impedance | Frequency Range | Return Loss | Insertion Loss | Out - Out Isolation |
SD2 | 10-2350 MHz 2-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2350 | 10/10 10/10 10/10 10/10 10/10 8/8 | 4.5 4.5 5.0 6.0 7.5 9.0 | 15 20 20 20 20 20 |
SD3 | 10-2350 MHz 3-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2350 | 8/6 8/10 8/10 10/8 8/8 8/8 | 8.0 8.5 9.5 10.5 12.0 13.5 | 20 20 20 20 20 20 |
SD4 | 10-2350 MHz 4-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2350 | 4/4 8/10 10/10 10/10 10/10 8/8 | 8.5 8.5 9.5 11.0 12.5 14.0 | 22 22 22 20 20 18 |
SD6 | 10-2350 MHz 6-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2350 | 6/4 8/10 10/10 10/10 8/10 6/8 | 12.0 12.0 13.0 15.0 16.0 18.0 | 20 20 20 18 18 18 |
SD8 | 10-2350 MHz 8-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2350 | 5/5 7/10 10/10 10/9 10/8 | 12.0 12.0 13.5 15.0 16.5 18.0 | 25 25 25 20 18 18 |
Model | PI-026 | PI-03 |
Pass Band | DC-2350 MHz | DC-2150 MHz |
Pass Band Loss | 1.0dB Max. | 1.0dB |
In / Out Impedance | 75ohms | 75ohms |
Return Loss | 10dB Min. | 10dB Min. |
Power Insertion | DC +/- 24V | DC +/- 24V |
Dimensions | 23 x 52 x 59 | 60x18x51mm |
Model | Description | Impedance | Operating | Gain | Noise Figure | Out - Out Isolation | Dimensions |
AD-102 | 10-2450 MHz 2-WAY AMPLIFIED DIVIDER | 75 | 9-18 | 16-10 | 6 | 18-25 | 23x52x59 |
AD-104 | 10-2450 MHz 4-WAY AMPLIFIED DIVIDER | 75 | 9-18 | 12-16 | 6 | 20-25 | 23x52x59 |
AD-106 | 10-2450 MHz 6-WAY AMPLIFIED DIVIDER | 75 | 9-18 | 8-2.5 | 6 | 20-25 | 23x119x59 |
AD-108 | 10-2450 MHz 8-WAY AMPLIFIED DIVIDER | 75 | 9-18 | 8-1.5 | 6 | 20-25 | 23x119x59 |
Model | Combine | Frequency | Pass Band | Return | Out-of-band | In / Out | Dimensions |
SUV-201 | 10-800 | 10-76 | 1.0 | 12 | 30 | 75 | 23x52x59 |
950-2050 | 950-1000 | 3.0 | 6 | 25 | |||
SUV-201S | 10-800 | 10-76 | 1.0 | 12 | 30 | 75 | 17x59x49 |
950-2050 | 950-1000 | 3.0 | 6 | 25 | |||
SUV-201B | 10-800 | 10-100 | 1.0 | 12 | 30 | 75 | 23x75x59 |
950-2350 | 950-1800 | 2.5 | 6 | 25 |
Model | Bandwidth | Gain | Gian Flatness | Output Level | Impedance | Power Supply | Dimensions |
OM-1220 | 40-2450 | 21 TO 17 | 90 | 6.0 | 75 | 12-18V | 18x85x29 |
OM-4220 | 450-2450 | 21 TO 17 | 90 | 6.0 | 75 | 12-18V | 18x85x29 |
OM-9220 | 900-2450 | 20 TO 16 | 90 | 6.0 | 75 | 12-18V | 18x85x29 |
LA-123 | 40-2450 | 21 TO 16 | 90 | 6.0 | 75 | 12-18V | 20x81x27 |
LA-423 | 450-2450 | 21 TO 17 | 90 | 6.0 | 75 | 12-18V | 20x81x27 |
LA-923 | 900-2450 | 20 TO 16 | 90 | 6.0 | 75 | 12-18V | 20x81x27 |
Model | Specification | Impedance | Frequency Range | Return Loss | Insertion Loss | Out - Out Isolation |
In/Out | In/Out | |||||
PD2 | 10-2450 MHz 2-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2450 | 8/8 10/10 12/12 12/12 10/12 8/10 | 4.5 4.5 5.0 6.0 7.5 9.0 | 25 25 23 22 20 20 |
PD4 | 10-2450 MHz 4-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2450 | 8/8 8/10 10/12 10/10 8/10 6/8 | 8.5 8.5 9.5 11.0 12.5 14.0 | 22 25 25 22 20 20 |
PD6 | 10-2450MHz 6-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2450 | 8/8 8/10 10/10 10/12 8/10 6/8 | 12.0 12.0 13.0 15.0 16.0 18.0 | 20 25 24 23 20 20 |
PD8 | 10-2450MHz 8-WAY SPLITTER | 75/75 | 5-40 40-470 470-860 900-1750 1750-2150 2150-2450 | 8/8 8/10 10/10 10/12 8/10 6/8 | 12.0 12.0 13.5 13.5 16.5 18.0 | 25 25 25 25 20 20 |
