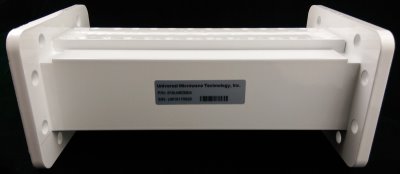

輸入頻率 | 3.40-4.20GHz |
噪音系數@室溫 | 25°K |
輸入射頻電平 | -100至-55dBm |
圖像載波抑制 | >40dBc. |
焦叉極化隔離度 | 35dB最小 |
輸出頻率 | 950-1750MHz |
輸出阻抗 | 75歐姆 |
輸出VSWR | <2.0:1最大 |
增益@室溫 | 65dB典型值 |
增益平整度 | ±4dB |
增益波動 | 1.0dB p-p 最大 |
三次截取點（IP3） | +10dBm最小 |
1 dB壓縮點（P1 dB） | +5dBm |
LO頻率 | 5150MHz |
頻率穩定度 | ±2.5MHz（-40至+60℃） |
LO Radiation at input | -45dBm最大 |
相位噪音 | @1kHZ <-75dBc/Hz最大 |
@10kHZ <-93dBc/Hz最大 | |
@100kHZ <-105dBc/Hz最大 | |
直流電壓（由IF電纜輸入） | 13-24V |
直流電流 | 150mA最大 |
運作溫度 | -40至+60℃ |
儲存溫度 | -55至+80℃ |
Technical Specifications | ||

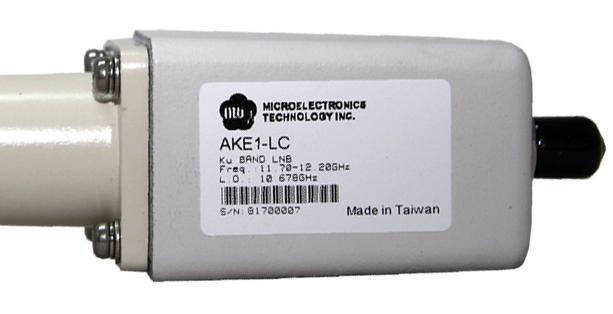

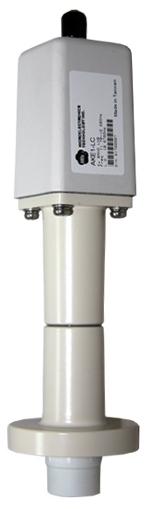

1. | INPUT FREQUENCY: | 11.70~12.75 GHz |
2. | OUTPUT FREQUENCY: | 1022 ~ 2072 MHz |
3. | L.O. FREQUENCY: | 10.678 GHz |
4. | NOISE FIGURE: | 0.7 dB (typ.), 1.2dB (max.) |
5. | CONVERSION GAIN (ROOM TEMP): | 56 dB (min.) 65(max.) |
6. | GAIN FLANTNESS: | ±0.5 dB / 36 MHz ±5 dB (typ.) / Full Band |
7. | CROSS POL. ISOLATION: | 25dB (typ.) |
8. | L.O. FREQUENCY STABILITY: | ±1.5 MHz (max.) @ +25℃ ±2.5 MHz (max.) @ -40℃~+60℃ |
9. | L.O. PHASE NOISE: | -55 dBc / Hz @ 1 KHz -80 dBc / Hz @ 10 KHz -90 dBc / Hz @ 100 KHz |
10. | IMAGE REJECTION: | 40 dB (min.) |
11. | OUTPUT VSWR: | 2.5 : 1 (max.) |
12. | DC CURRENT CONSUMPTION: | 95mA (max.) |
13. | OPERATING TEMPERATURE: | -40℃ ~ +60℃ |
**All requirements shall be met at 25℃, unless otherwise specified. **Wistron NeWeb reserves the right to change any information in this brochure without notice. | ||

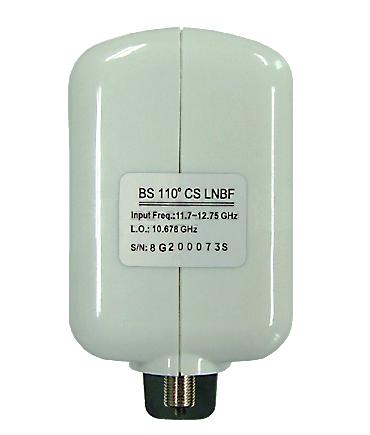

Reception Frequency | 11.70 ~ 12.75 GHz |
Polarization | LHCP |
Output Frequency | 1022 ~ 2072 MHz |
Noise Figure | 0.5dB (TYP.) |
Conversion Gain | 48 ~ 60 dB |
Gain Flatness | 4dB @11.7 to 12.01 GHz |
L.O. Frequency | 10.678 GHz |
L.O. Frequency Stability | ±1.5 MHz (max.) |
L.O. Phase Noise | -52dBc/Hz @ 1 KHz |
Cross Pol. Isolation | 25dB (typ.) |
Output Impedance | 75Ω (F type female) |
Image Rejection | 31 dB (min.) |
DC Voltage Supply | 15 V (typ.) (working range : 9.5 ~ 18V) |
Operating Temperature Range | -30℃ ~ +50℃ |
Output VSWR | 2.5 : 1 (max.) |
P 1dB | 0dBm (min.) |
DC Current Consumption | 120 mA (max.) |
RF Input | Frequency Range | 11.7 - 12.2 GHz |
Interface | WR75 Wave guide | |
VSWR | 3.5 : 1 (max) @ Room Temp | |
IF Output | Frequency Range | 950 - 1450 MHz |
Connector Type | 75Ω Female Connector | |
VSWR | 1.7 : 1 (max) @ Room Temp | |
Local Oscillator | Frequency | 10.678 GHz |
Frequency Stability | ± 500 KHz(Max.) @ Room Temp | |
Frequency Phase Noise | -65dBc/Hz@1KHz(Max.) | |
Conversion Performance | Conversion Gain | 53dB(Min.)63dB(Max.) |
Gain Variation(P-P) | 4dB(Max.) | |
Gain Flatness | 1dB(Max.)/26MHz | |
Noise Figure | 0.4dB (Typ.) | |
Image Rejection | 45dB (Min.) | |
Power Requirements | DC Current Consumption | 120mA(Max.) |
Operating Voltage | -12~24Vdc | |
Environment | Operating Temperature | -40℃ ~ +60℃ |
Storage Temperature | -55℃~ +80℃ |

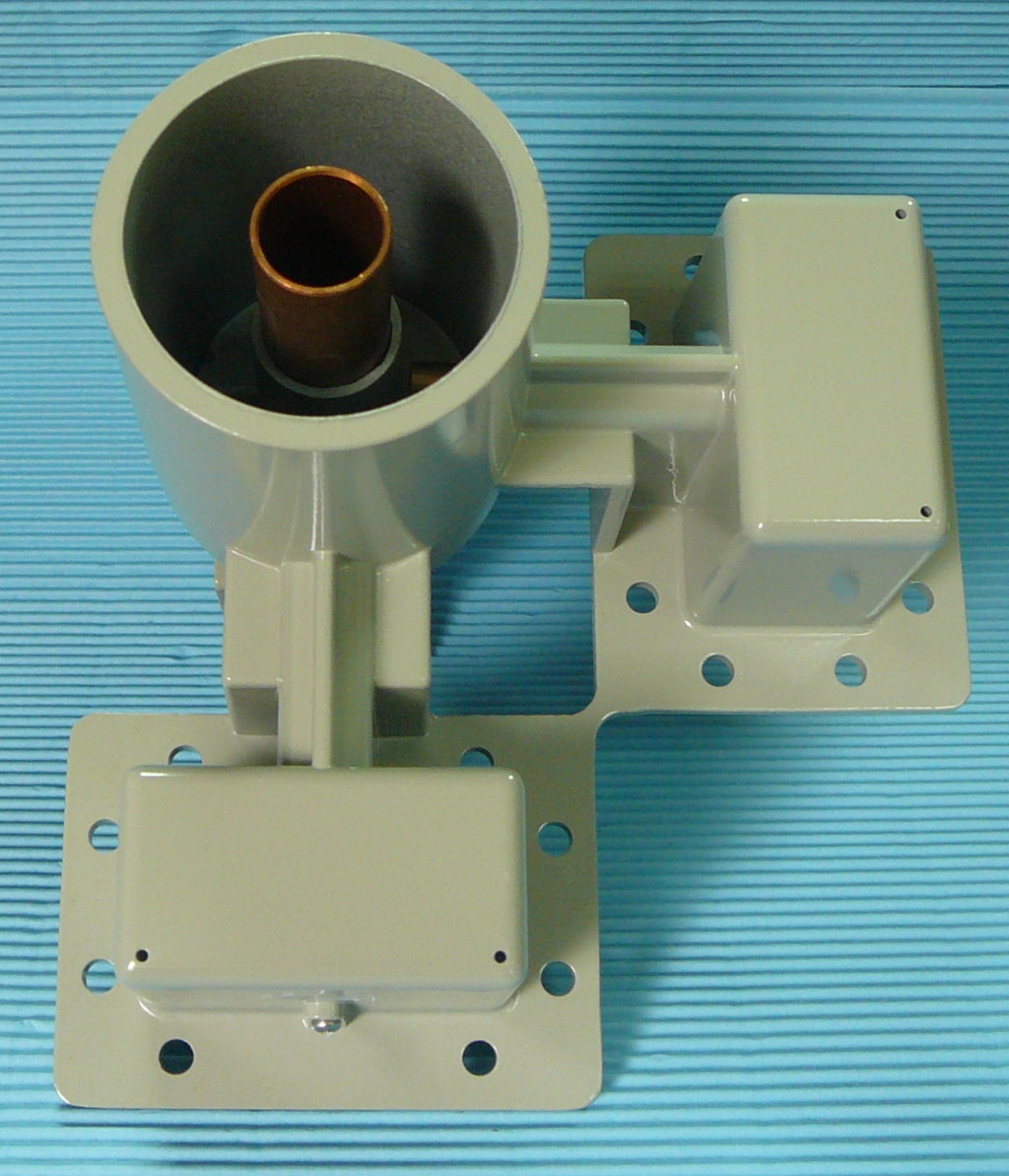

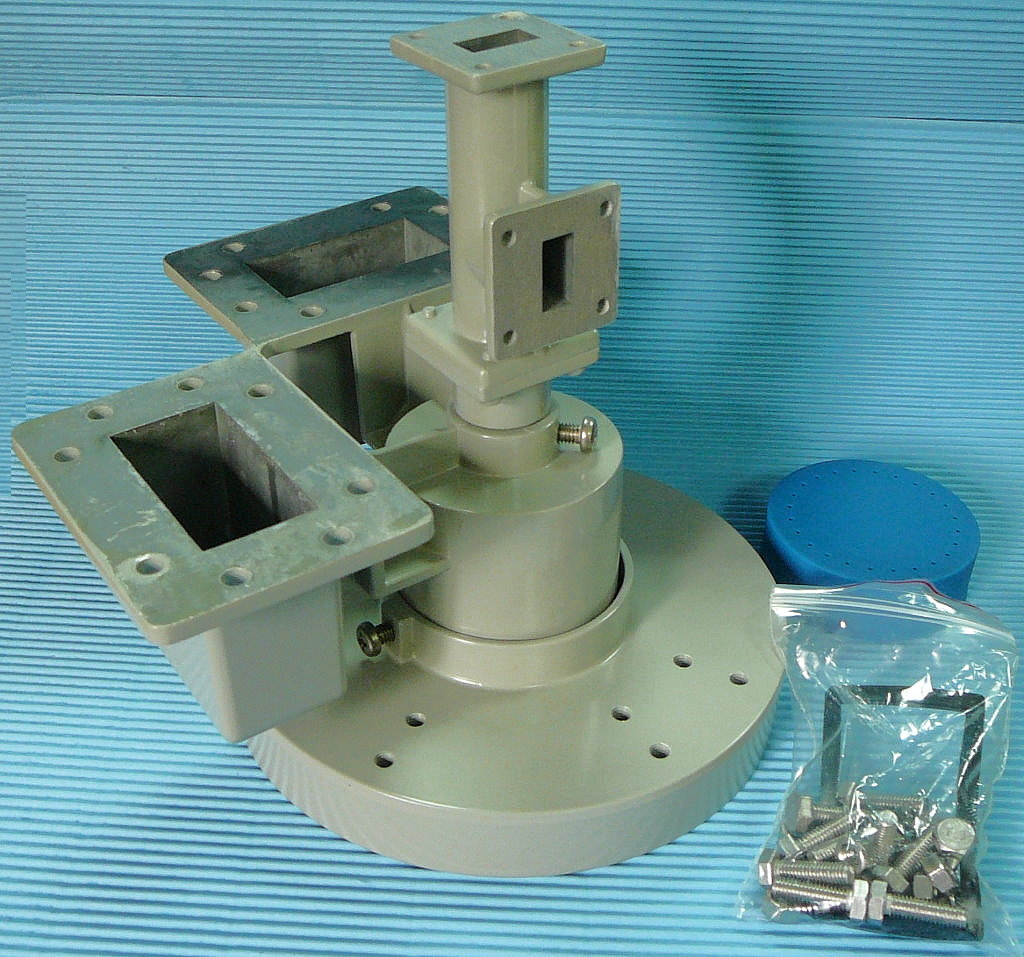

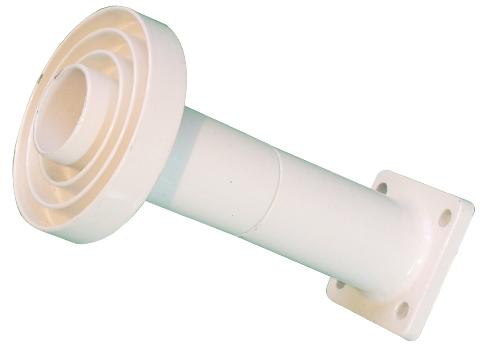

Frequency Range | 3.7-4.2 GHz |
VSWR | 1.3:1 in both bands |
f/D Range | .33 to .45 |
Cross Pol. Isolation | 25 dB Min |
Output Ports WR | 229 Compatible |
Temperature Range | -40° C to +60° C |
Size | 6.5" diameter x 4.5" height |
Weight | 1.43 lbs |

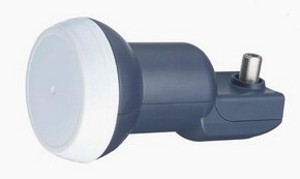

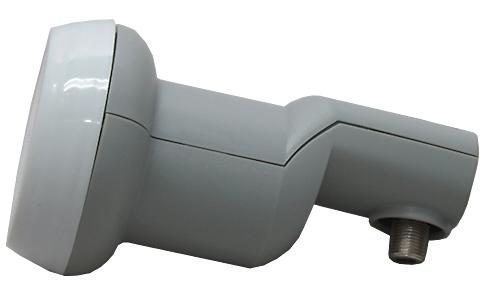

INPUT FREQUENCY RANGE | 12.25GHz~12.75 GHz |
OUTPUT FREQUENCY RANGE | 950MHz~1450MHz |
OUTPUT CONNECTOR TYPE | 75 Female Connector |
OUTPUT VSWR | 2.5:1(max)@Room Temperature |
L.O. FREQUENCY | 11.3 GHz |
L.O. FREQUENCY STABILITY | ±1.0 MHz (max.) @ Room Temperature |
L.O. PHASE NOISE | -50 dBc/Hz@1KHz@Room Temperature |
CONVERSION GAIN | 55dB(TYP.) 62dB(Max) |
GAIN VARIATION | 5dB p-p(Max.) |
GAIN FLATNESS | 2dB(Max.) |
NOISE FIGURE | 0.6dB(TYP) |
IMAGE REJECTION | 40 dB(Min.) |
DC CURRENT CONSUMPTION | 110mA (Typ.) 150mA(Max.) |
OPERATING VOLTAGE | Vertical: 11.5~14 Vdc |
OPERATING TEMPERATURE RANGE | -40℃~60℃ |
STORAGE TEMPERATURE RANGE | -55℃~80℃ |

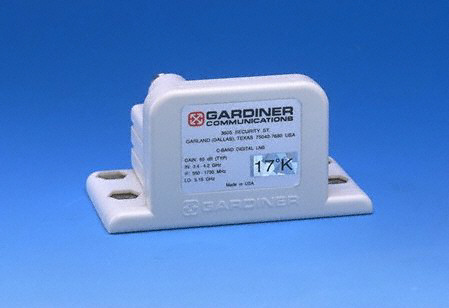

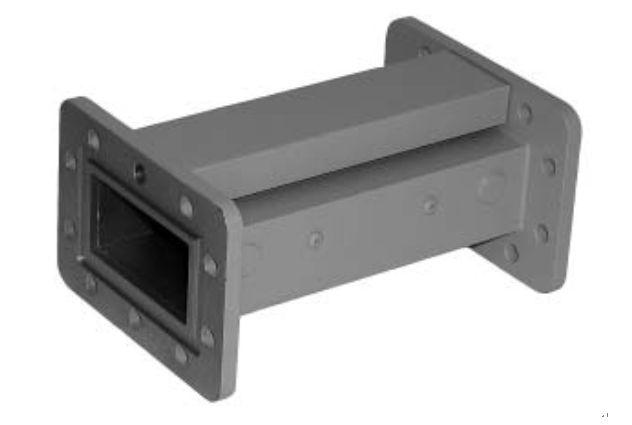

輸入頻率 | 3.40-4.20GHz |
噪音系數@室溫 | 17°K |
輸入射頻電平 | -100至-55dBm |
圖像載波抑制 | >45dBc. |
焦叉極化隔離度 | 35dB最小 |
輸出頻率 | 950-1450MHz |
輸出阻抗 | 75歐姆 |
輸出VSWR | <2.0:1最大 |
增益@室溫 | 65dB典型值 |
增益平整度 | ±3dB |
增益波動 | 1.0dB p-p 最大 |
三次截取點（IP3） | +10dBm最小 |
1 dB壓縮點（P1 dB） | +5dBm |
LO頻率 | 5150MHz |
頻率穩定度（-40至+55℃） | ±1.5MHz |
LO Radiation at input | -45dBm最大 |
相位噪音 | @1kHZ <-75dBc/Hz最大 |
@10kHZ <-80dBc/Hz最大 | |
@100kHZ <-100dBc/Hz最大 | |
直流電壓（由IF電纜輸入） | 11-21V |
直流電流 | 160mA最大 |
INPUT FREQUENCY RANGE | 12.25GHz~12.75 GHz |
OUTPUT FREQUENCY RANGE | 950MHz~1450MHz |
OUTPUT CONNECTOR TYPE | 75 Female Connector |
OUTPUT VSWR | 1.7:1(max)@Room Temperature |
L.O. FREQUENCY | 11.3 GHz |
L.O. FREQUENCY STABILITY | ±500 KHz (max.) @ Room Temperature |
L.O. PHASE NOISE | -65 dBc/Hz @ 1KHz @ Room Temperature |
CONVERSION GAIN | 53dB(TYP.) 63dB(Max) |
GAIN VARIATION | 4dB p-p(Max.) |
GAIN FLATNESS | 1dB(Max.) |
NOISE FIGURE | 0.4dB(TYP) |
IMAGE REJECTION | 45 dB(Min.) |
DC CURRENT CONSUMPTION | 120mA(Max.) |
OPERATING VOLTAGE | -12~24 Vdc |
OPERATING TEMPERATURE RANGE | -40℃~60℃ |
STORAGE TEMPERATURE RANGE | -55℃~80℃ |
